HMI5-TP7

BACnet Touch Panel

The HMI5-TP7 is a 7-inch capacitive BACnet touch screen panel. Its customizable user-interface helps visualize and control many buildings systems. Thanks to its in-wall flush mount design it integrates into conference rooms, reception areas, corridors, and apartments.

Capacitive touchscreen

The HMI5-TP7 is equipped with a capacitive touch screen.

Fast multi-core processor

8-Core ARM Cortex CPU.

In-wall flush mount

Wall mountable design with brackets.

POE (Power Over Ethernet)

The power supply can be provided via POE in accordance with the IEEE802.3af specification or with a standard 9VDC-36VDC power supply.

Wi-Fi

Wi-Fi 802.11b/g/n.

Android

The operating system is Android 6.0.

Case Study

BACnet Touch Panel UK

Control of HVAC and lighting of apartments in London, UK.

BACnet Touch Panel Australia

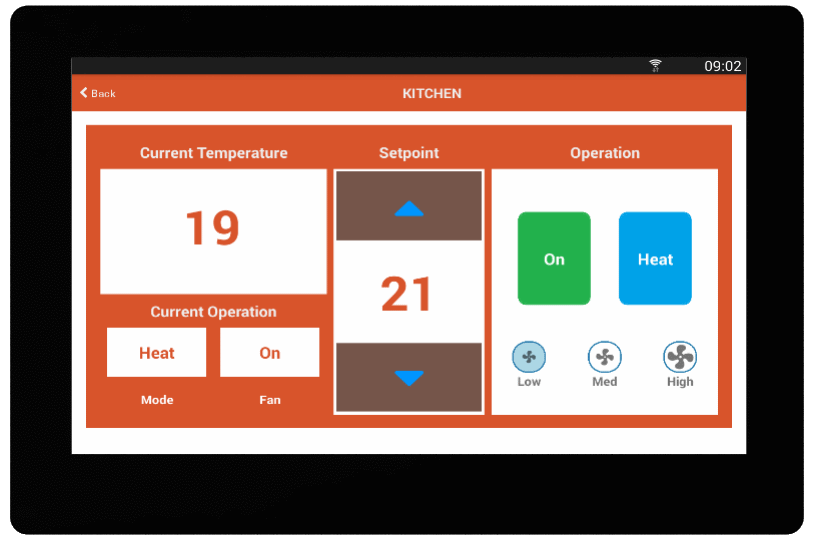

HVAC control of apartments in Australia.

BACnet Support



Highlight

Without the need for additional hardware, this display can natively access the BACnet/IP network to discover BACnet devices and their objects. It can also read and write BACnet objects properties.

BACnet

Uses the BACnet/IP protocol.

Access BACnet devices on the local network (Wi-Fi, Ethernet) or Register as a Foreign Device to a remote network.

Allows reading and writing of most available properties of the BACnet objects.

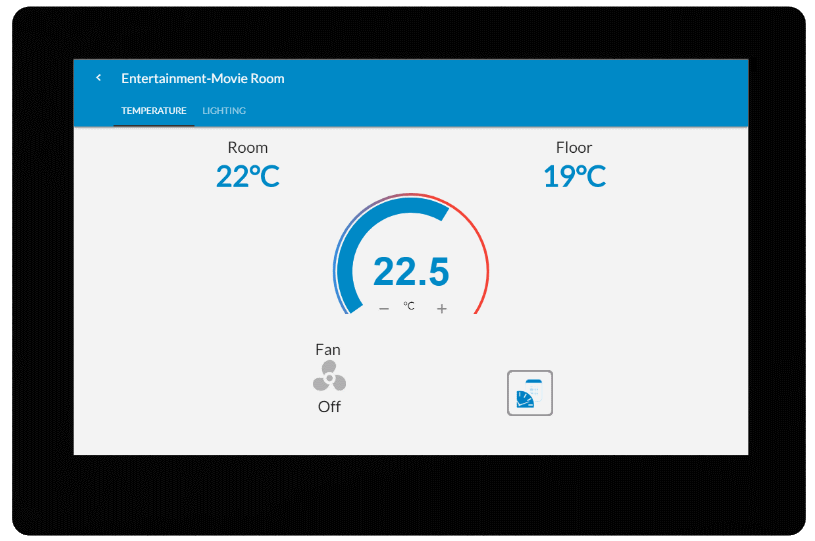

Possibility to create a reusable dynamic user interface for tablets, phones and other devices.

Web Interface

By using the HMI5 app, any web developer can create within a few minutes an interface to visualize and control building systems. HMI5 presents a simple JavaScript interface to access the BACnet network.

Model HMI5-TP7
Power supply 9VDC-36VDC or POE IEEE802.3af
Dimension 182 x 121 x 25 mm (L x W x H)
Fixation In-wall mount
CPU 8-Core ARM Cortex CPU
Wi-Fi 802.11b/g/n
Ethernet interface 1, RJ45 port
Operating System Android 6.0

Ordering information

Model Number Model Description
HMI5-TP7 7-inch BACnet Touch Screen Panel, with a capacitive screen and POE.
HMI5-TP7
$370.00 Read more

Background

Need additional information about HMI5-TP7?
